- Display Size 2.8 inch
- Display Type TFT
- Driver Chip ILI9341
- Resolution 320 x 240 (Pixel)
- Display Color RGB 65K color
- Effective Display Area 43.2 x 57.6 (mm)
- Module Size 50.0 x 86.0 (mm)
- Touch Type Resistive
- Viewing Angle >60°
- Operating Voltage 5V
- Power Consumption About 115mA
- Internal RAM 520KB
- Supported Interfaces UART, SPI, I2C, PWM, ADC, DAC
- Camera Support OV2640 and OV7670
- Flash Support Built-in flash
- Storage Support TF card
- Multiple Sleep Modes Yes
- Embedded Features LwIP and FreeRTOS
- Working Modes STA, AP, STA+AP
- Smart Config Yes
- AirKiss Configuration One-click network configuration
- Secondary Development Available
- Clock Frequency Up to 240MHz

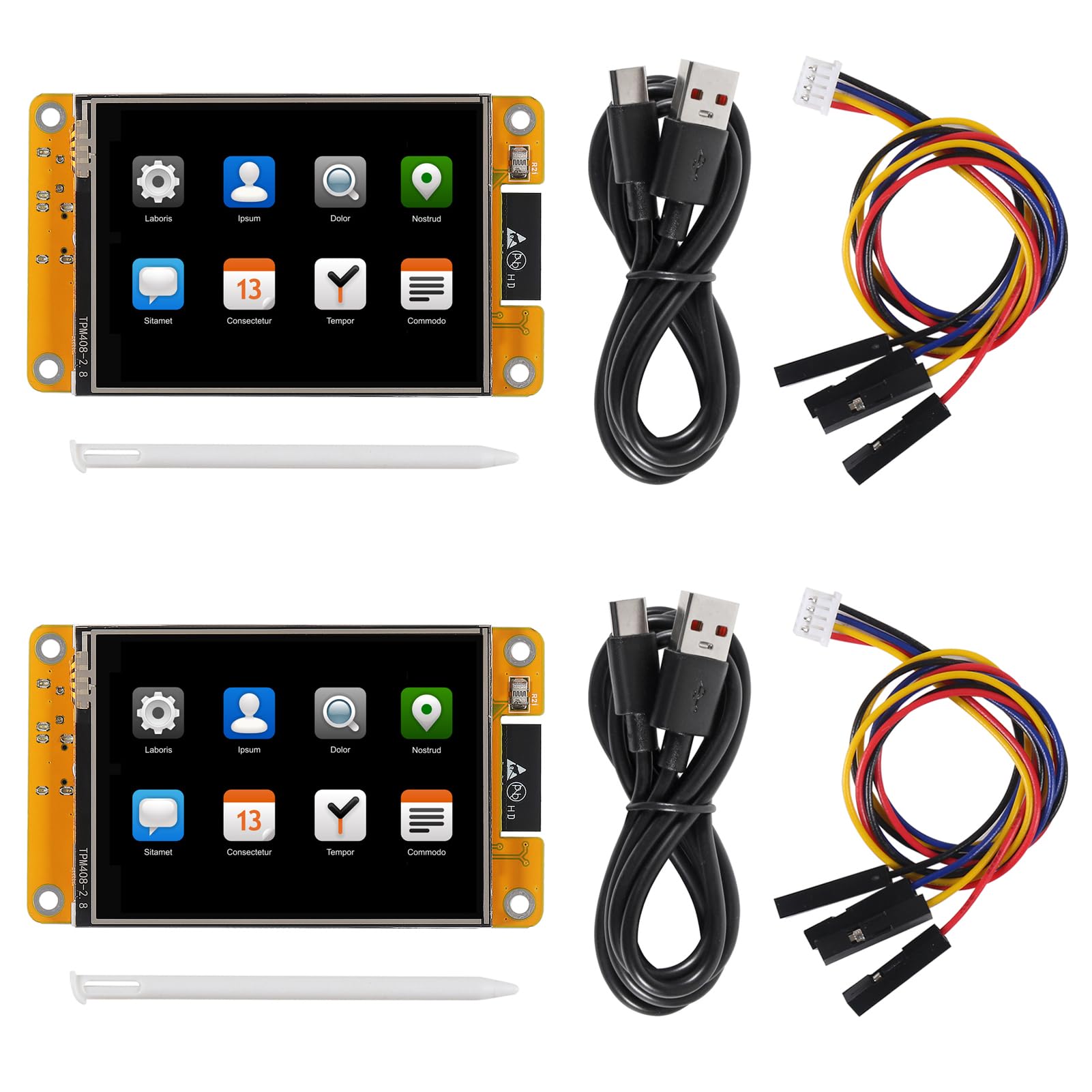

- Includes 2.8” ESP32 Display Module, USB Cable, Touch Pen, 4Pin Connector Cable, Packaging box

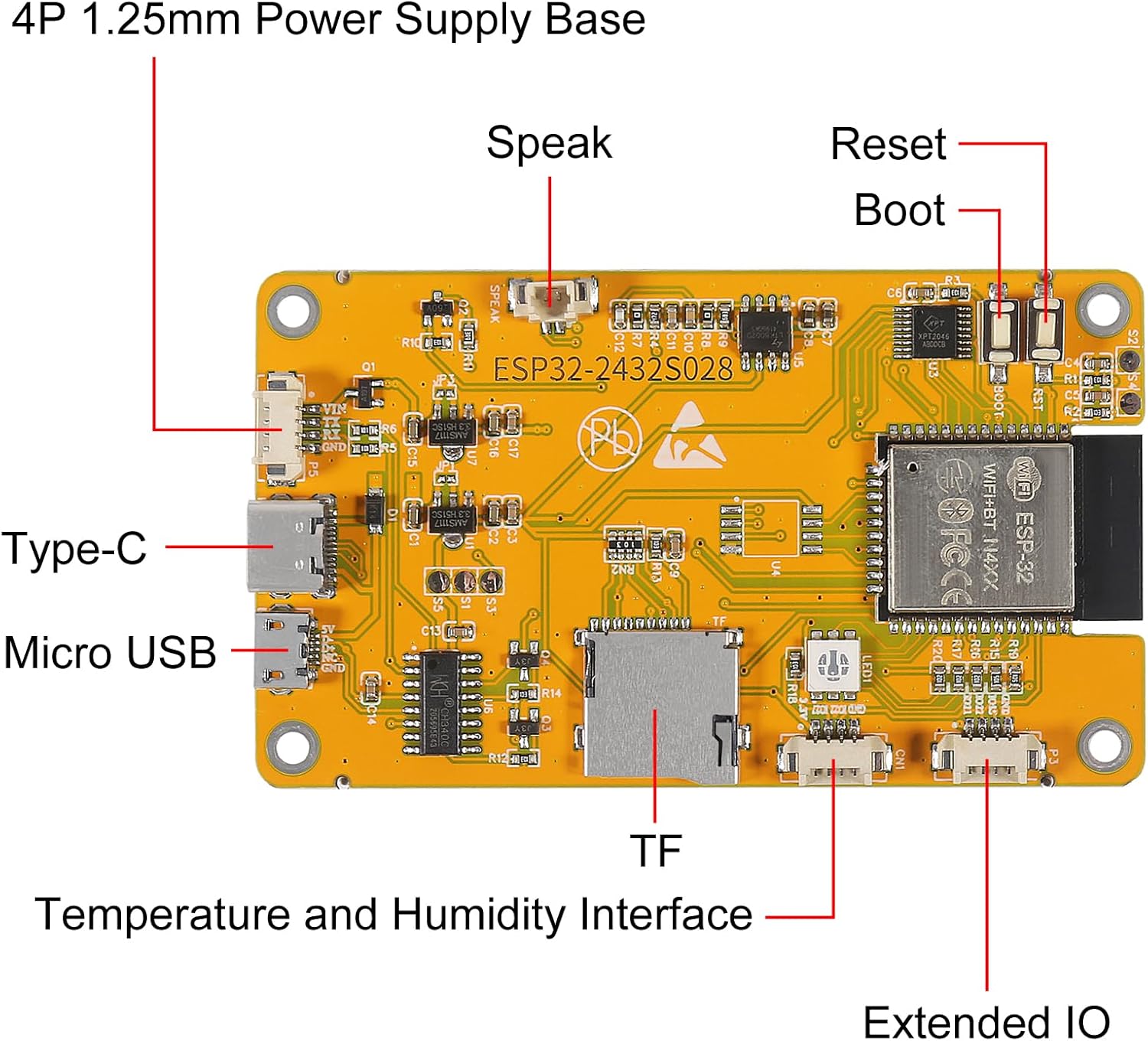

If you are diving into the world of IoT or embarking on a personal tech project, the AOICRIE 2.8″ inch ESP32 Display is an exceptional companion that seamlessly blends functionality with effortless to handle design. This development board harnesses the power of the versatile ESP32-DOWDQ6 controller, enabling you to explore a plethora of creative possibilities in your projects. With its lively 240×320 resolution and vibrant RGB 65K colors, the display is sure to bring your visions to life in stunning detail.
What sets this module apart is not just its display capabilities, but the comprehensive features that cater to both beginners and seasoned developers alike. The resistive touch screen allows for intuitive interactions, making it ideal for applications that require user inputs, such as App remote control and environmental data collection. Bundled with essential accessories like a USB cable and a touch pen, setting up becomes a breeze, so that you can focus more on creating and less on configuring.
The ESP32 Display thrives in various applications, making it an ideal choice for projects in smart agriculture, wireless monitoring, and even remote parameter setting. Its dual-core, low-power CPU ensures that you can run multiple tasks concurrently without compromising on performance. Whether you are using its capabilities for a home automation project or developing a sophisticated wireless positioning system, this module is designed to adapt to your needs.
Moreover, the inclusion of multiple interfaces such as UART, SPI, and I2C opens up a world of connectivity options, making integration with other hardware components effortless. You’ll appreciate the built-in features like support for cameras and TF cards, which enhance the module’s functionality, allowing for multimedia applications and data storage capabilities.
In summary, the AOICRIE 2.8″ inch ESP32 Display encapsulates the essence of modern development boards, offering a rich feature set that empowers creators to innovate and experiment. With its robust performance, vibrant display, and versatility, this module stands as a testament to what can be achieved in the sphere of IoT and smart technologies.
Pros
- Compact 2.8-inch size ideal for small projects and portable applications.
- High-resolution display (320 x 240) with vibrant RGB 65K color representation.
- Includes a resistive touch screen for interactive applications.
- Versatile supported interfaces (UART, SPI, I2C, PWM, ADC, DAC) for various connectivity options.
- Built-in support for popular camera modules (OV2640 and OV7670) enhances multimedia capabilities.
- Low power consumption (about 115mA) suitable for battery-operated devices.
- Multiple sleep modes help in energy efficiency during operation.
- Strong development support with embedded LwIP and FreeRTOS for advanced applications.
- Flexible working modes (STA, AP, STA+AP) allow adaptability in network configurations.
Cons
- Resistive touch may not be as responsive as capacitive touch screens.
- Limited internal RAM (520KB) could restrict more complex applications.
- Viewing angle (>60°) may not be ideal for all display positions.
- Requires additional components (USB cable, connectors) for full functionality, which may not be included in some packages.
- Flash storage is built-in, potentially limiting expansion without external TF card.
